Digital RDK on 3 workplaces

The complex x-ray diagnostic with digital image processing consists of 3 workplaces and is intended for carrying out roentgenoscopic, radiographic and tomographic researches with use of the amplifier of the x-ray image (AXRI) with television system, and also the digital image receiver on a rack of pictures.

The complex includes:

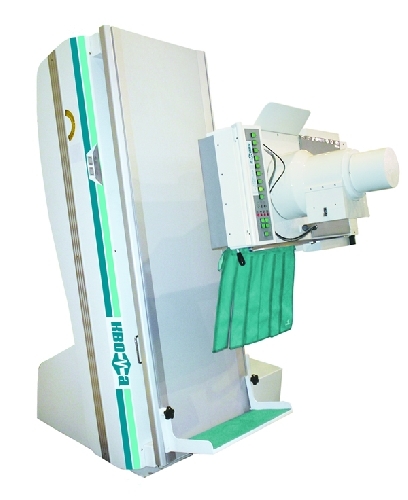

• rotary table support
• amplifier of the x-ray image

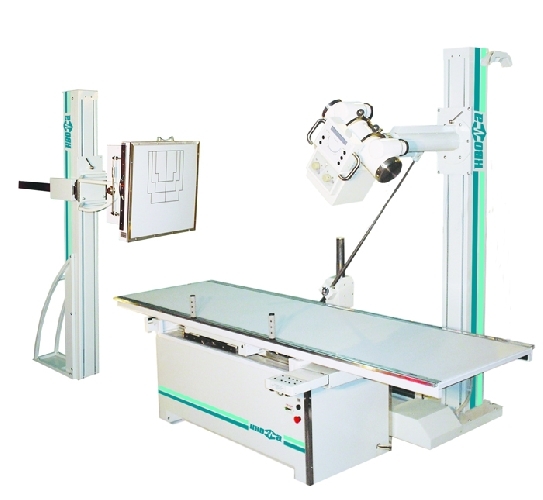

• table with a vertical column and processor management of the movements for carrying out radiographic and tomographic researches;
• rack of pictures with the digital receiver and electromechanical drives of turn and vertical movement;
• x-ray radiators on the first and second workplaces;
• the high-frequency supply equipment on 2 x-ray tubes;
• high-voltage cables (set);
• the automated workplace a X-ray laboratory assistant;
• the automated workplace of the radiologist which allows to work in a local information network;
• the modem for remote testing of the digital receiver.

• supervision of x-ray images in the course of their registration
• conclusion to the screen of the monitor of any x-ray image;
• processing and the analysis of the x-ray image (increase or reduction of the image in general and fragments, a positive - a negative, calculations of the allocated areas);
• record of x-ray images (archiving) in the memory device, on the magnetic or optical carrier;
• transfer of x-ray images and information on the Internet network in the DICOM 3 format;
• maintaining the statistical reporting;
• maintaining the database of patients with functions of addition, editing, removal of data on the patient and research, search, a filtration, sorting;

Functions of processing of the image:

• Brightness / Contrast
• Automatic normalization of the histogram
• Negative/positive
• Mirror display of the image (vertical, horizontal)
• Turn of the image

Functions of the visual analysis:

• smooth scaling up to 10 times
• underlining of borders
• sizes, distances
• corners
• areas
• assessment of optical density
• the automated creation and issue of the protocol of research
• creation of templates of reports and protocols of research
• possibility of the printing of images and accompanying information on printers
