Digital RDK on 2 workplaces

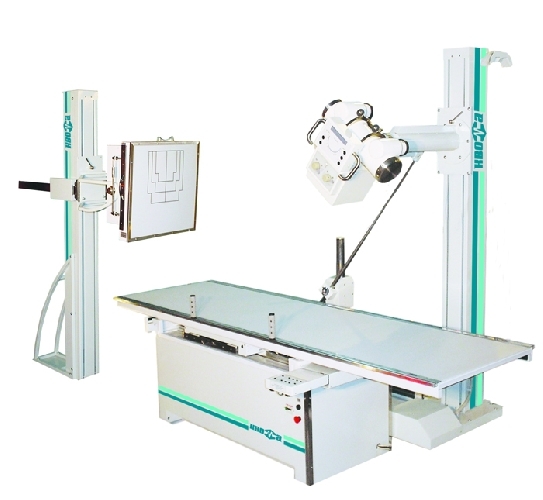

The complex x-ray diagnostic with digital image processing consists of 2 workplaces with the digital image receiver of the x-ray  on a rack of pictures and is intended for carrying out radiographic researches and a tomography.

The complex includes:

  • table with a vertical column and processor management of the movements for carrying out radiographic and tomographic researches;
  • rack of pictures with the digital receiver and electromechanical drives of turn and vertical movement;
  • x-ray radiator;
  • high-frequency supply equipment; high-voltage cables (set);
  • the automated workplace a X-ray laboratory assistant;
  • the automated workplace of the radiologist which allows to work in a local information network;
  • the modem for remote testing of the digital receiver.

Functionality of the software

  • supervision of x-ray images in the course of their registration
  • conclusion to the screen of the monitor of any x-ray image;
  • processing and the analysis of the x-ray image (increase or reduction of the image in general and fragments, a positive - a negative, calculations of the allocated areas);
  • record of x-ray images (archiving) in the memory device, on the magnetic or optical carrier;
  • transfer of x-ray images and information on the Internet network in the DICOM 3 format;
  • maintaining the statistical reporting;
  • maintaining the database of patients with functions of addition, editing, removal of data on the patient and research, search, a filtration, sorting;

Functions of processing of the image:

  • Brightness / Contrast
  • Automatic normalization of the histogram
  • Negative/positive
  • Mirror display of the image (vertical, horizontal)
  • Turn of the image

Functions of the visual analysis:

  • smooth scaling up to 10 times
  • underlining of borders
  • sizes, distances
  • corners
  • areas
  • assessment of optical density
  • the automated creation and issue of the protocol of research
  • creation of templates of reports and protocols of research
  • possibility of the printing of images and accompanying information on printers
